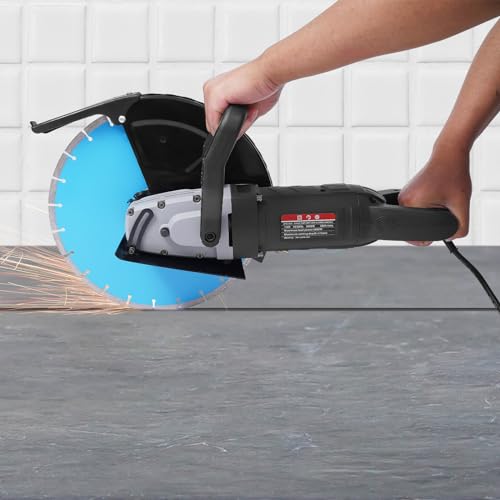

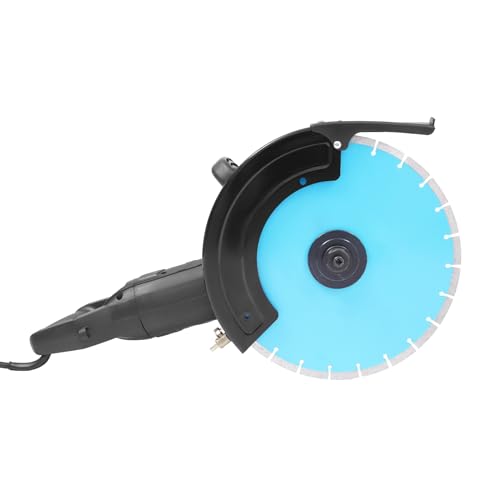

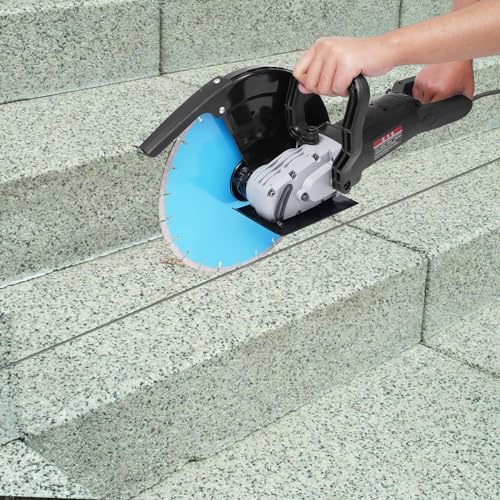

Electric Concrete Saw, 5800W 14in Circular Saw Cutter with 5.31in Cutting Depth, Wet/Dry Corded Concrete Saw for Metal, Granite, Porcelain, Wood, Reinforced Concrete

Details

Locking Switch: It saves you the effort without having to hold the switch all the time while using it.

Splash Cover: The carbon steel cover can effectively block dust and flying objects in the work.

External Carbon Brush: It improves the efficiency and performance of the product while reducing wear and noise, thus protecting the motor and prolonging its life. The external design also makes it easier to replace the carbon brush.

Water Outlets: They can help you connect the water pipe more easily.

Application

It is suitable for metal, granite, porcelain, wood, reinforced concrete, cement, brick, steel, factories, workshops, homes, timber industry, etc

How to Install the Saw Blade

1. Press and hold the locking button.

2. Turn the shim with a wrench.

3. Place the saw blade and cover the shim.

4. Press and hold the locking button and tighten the shim.

Specification

Color: Black and Blue

Model: Z1E-355

Style: Modern

Assembly Required: Yes

Plug Type: US Standard

Power Source: Corded Electric

Blade Shape: Round

Material: ABS, Diamond Blade and Carbon Steel

Motor Type: Copper-nickel-tin Motor

Power: 3000W

Max. Load Power: 5800W

Speed: 3800rpm

Voltage: 110V, 50/60Hz

Adapter Model: HGFS120300

Input: 100-240V, 50/60Hz, 0.8A

Output: 12V, 3A

Max. Cutting Depth: 135mm/5.31inch

Blade Diameter: 35.56cm/14in

Product Size: 62*39cm/24.41*15.35inch

Package Size: 57.5*37*20cm/22.64*14.57*7.87inch

Gross Weight: 12kg/26.46lbs

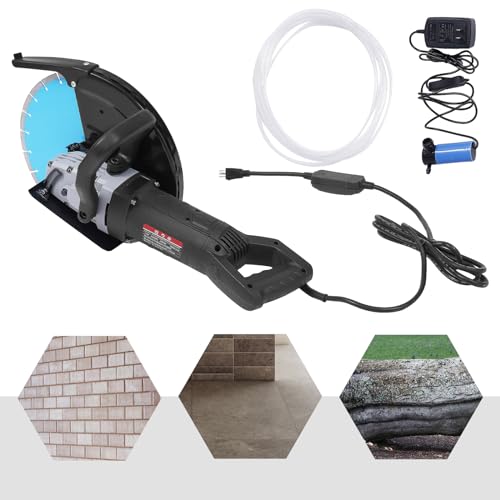

Package Included

1* Electric Concrete Saw

1* Blade

1* Power Adapter

1* Water Pump

1* Water Pipe

1* Splash Cover

1* English Manual

Other Accessories for Assembly

Build to Last: This electric concrete saw 14 inch is mainly made of high-quality ABS, diamond and carbon steel, which is insulating, strong, solid, wear-resistant, and not easy to deform, ensuring a long service life.
Powerful Function: With a maximum load power of 5800W and a maximum speed of 3800RPM, the copper-nickel-tin motor provides you with excellent performance and efficient grooving results. It also has a depth adjustment switch that allows you to adjust the saw by changing the height of the base plate for a maximum depth of cut of 5.31 inches.
Thoughtful Design: This electric concrete saw has two ergonomic front and rear handles, and the rear handle can be rotated 180° at the push of a button for easy maneuvering, which helps to cut accurately in both horizontal and vertical modes.
External Carbon Brush: It improves the efficiency and performance of the product while reducing wear and noise, thus protecting the motor and prolonging its life. The external design also makes it easier to replace the carbon brush.
Application: This electric concrete saw is suitable for metal, granite, porcelain, wood, reinforced concrete, cement, brick, steel, factories, workshops, homes, timber industry, etc.
